Complete Active Directory Guide

Active directory guide or tutorial helps you better understand active directory so that you can make full use of it for good purpose.

Active directory is definitely not a registry replacement. The directory is designed to handle a large number of read and search operations and a significantly smaller number of changes and updates.

The Definition of Active Directory

Active directory is a special-purpose database. The active directory database consists of objects and attributes. Objects and attribute definitions are stored in the active directory schema. Active directory data is hierarchical, replicated, and extensible. Domain, schema, and configuration are three partitions of active directory.

Active Directory

Active directory can save you a great deal of time by aiding in keeping software up to date, keeping each user's files and settings separate from other users' files and settings, and allowing users to log on using identikey credentials that they already know. It can also help you to allow one group of people to access certain programs and files while keeping those programs and files hidden from another group, depending on what fits your needs.

Active Directory Maker

Active directory uses the domain name system which is a standard internet service that organizes groups of computers into domains. Although active directory is quite convenient to use, drawing active directory by hand for most of us is still very difficult. No worries, with the help of active directory maker you can easily and quickly draw active directory digrams in minutes via offering you many active directory symbols.

Active Directory Maker

Active directory is a state-wide authentication directory that supports enterprise systems, provides contact information and scheduling integration, along with providing mechanisms for centralized desktop management. Using our active directory maker can greatly improve your working efficiency and save you precious time.

The Benefits of Active Directory

Active directory originated out of a democratization of design using Request for Comments or RFCs. Microsoft previewed active Directory in 1999, released it first with Windows 2000 Server edition. Using active directory diagram can bring you lots of benefits which are listed as below.

Active Directory

  1. Reduce overhead through standardization.
  2. Improve services through centralized management capabilities.
  3. Provide foundation for the following AD related services: Exchang, SharePoint.
  4. Improve workstation security.
  5. Central storage provided for individuals and departments.
  6. Lower departmental cost because infrastructure is managed and maintained by OIT.
  7. Password synced between AD and LDAP Directory Services.
  8. Backed up data on Home and Departmental drives.

Steps to Make Active Directory

Before you start to draw active directory diagram, you might need to know the steps to make active directory. We are very delighted to show you how to draw active directory step by step. First things first, open Edraw Max, point to New, then point to "Network".

Draw Active Directory

Find "Templates" on the right side of the software, and then double click active directory diagram to start draw page.

Draw Active Directory

On the drawing page, on the left side of the software, find the library. From library, you can see active directory symbols as the picture below shows.

Active Directory Symbols in Library

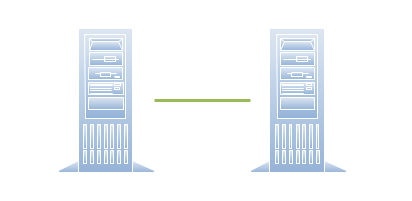

Just like drawing flowchart, you may drag and drop the active directory symbols on the drawing page and use connctor and line tool to connect them.

Connect Active Directory Symbols

After you finish drawing active directory diagram, you may add background to your drawing to make it look more attractive.
