Circuit Symbols for Digital and Analog Logic Design

> Edraw Symbol > Circuit Symbols for Digital and Analog Logic Design
Posted by James Freeman | 06/25/2021
The following circuit symbols show some standard digital and analog symbols for digital and analog logic design such as inverter, buffer, clock, function generator, amplifier, converter, logic gate, flip-flop, analog symbol, digital symbol, negative logic dot, delay element, i/o port, signal waveforms, integrator and multiplier, etc.

Digital Electronic Symbols

Free Download Electrical Diagram Software with All Symbols

Every electrical component symbol can be configured by the action button.

Inverter and Alternate Symbols

Inverter

Buffer and Alternate Symbols

Buffer

Clock

Clock

Function Generator

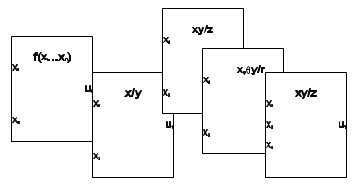

There are some alternative symbols for the function generator.

Function Generator

The designer can click the action button to change the configuration.

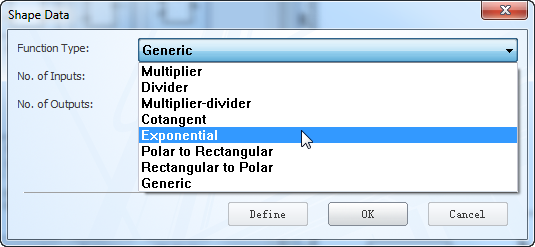

config function symbol

Amplifier Symbol

Amplifer

Logic Gate

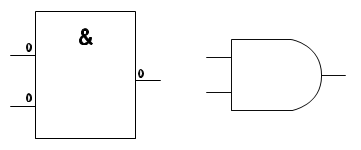

Logic Gate

In our integrated circuit schematics software, you can use the action button to choose the right circuit symbols with one click.

More circuit Symbols

Switch Symbols

Semiconductor Symbols

Transmission Path Symbols

Qualifying Symbols
