Smart Drawing Shapes

A wide range of smart drawing shapes that can arrange themselves automatically when edited. They are so intelligent that you can draw amazing diagrams astonishingly easily by just a few clicks.

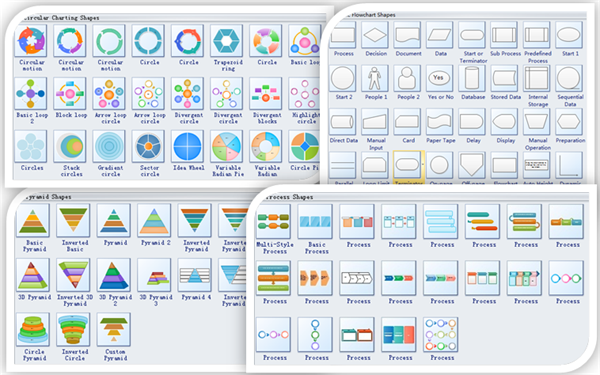

Here is a detailed introduction of the most commonly used drawing shapes and the guide about how to use them. The simplest way to know what you can do about smart shape is to select it and find out what control buttons are attached.

Major Types of Smart Drawing Shapes

Several types of smart shapes are introduced in this article. Click the corresponding links to learn more about them.

Smart Drawing Shapes

When using these shapes, you don't need to worry about layout or format. They are automatically connected, perfectly aligned and coordinately colored. The last four types of shapes are made up of sub shapes. Clicking the first time on the shape area selects the whole shape. Clicking the second time (time interval is a little bit longer than double click) selects the sub shape right under the cursor. Double clicking a shape activates its text box.

Standard Flowchart Shapes

A set of standard flowchart shapes are offered. These are really intelligent shapes which sometimes know what to do when you are moving them. The Basic and Highlight Flowchart shapes have four triangle arrows on top, bottom, left and right of the shapes. Clicking them adds or connects shapes on the corresponding direction.

Standard Flowchart ShapesFloating Button of Flowchart Shapes

When you are dragging a shape from the Symbol panel to the document, this shape is added to another one when the floating button turns red.

Add Flowchart Shape

Check out an amazing flowchart made with the standard flowchart shapes.

Make Friends Flowchart

Organizational Chart Shapes

The floating buttons of the highest level organizational chart shapes are located on the bottom.

Manager Shape

Two Floating Buttons

Other levels of organizational chart shapes have two floating buttons. The left one is for adding colleagues and the bottom one is for adding subordinates. Click one floating button or drag another shape from the symbol panel over it to add one shape each time.

Here are some marvelous org chart templates made with the smart shapes. Download them and make some changes to represent your organization's structure.

Mind Map Shapes

Each mind map shape has one floating button. Each time you click it, you add one sub shape to its shape. But there is another faster way to use mind map shapes.

  • Select the Main Idea shape -> press Insert key: adds Main Topic shape.
  • Select a Main Topic shape -> press Insert key: adds Main Topic shape.
  • Select a Main Topic shape -> press Ctrl + Insert: adds Sub Topic shape to the next level.
  • Select Sub Topic shape -> press Insert key: adds Sub Topic shape of the same level.
  • See how these shapes can help you create fantastic mind maps in the sample mind maps below.

    Circular Diagram Shapes

    This kind of shapes are mainly formed by sub shapes like circles, arrows, boxes and sectors surrounding a center. They are mainly used to represent cycles. You can also use them to show this case: several elements are all related to a main factor in the center. All of them have floating buttons. Some shapes are designed with two floating buttons. The inner one is for altering the central sub shape. Some of the shapes contain diamond control buttons for more operations. By dragging them, you can change shape size or gap/interval between shapes.

    According to different shapes' features, the floating buttons contain different options. You can mainly do the following operations by clicking the floating button:

  • Add/delete a circle/segment/ring/arrow/box.
  • Set circle/segment/ring/arrow/box number.
  • Change gap size.
  • Hide center.
  • Set arrow size.
  • Invert/hide Arrow.
  • Floating Buttons of Circular Shapes

    Lists Shapes

    The major features of Lists Shape are similar to Circular Shapes. Its distinctive function is that you can use Set Zoom Size command to make the sub shapes in different sizes - gradually enlarging or gradually shrinking.

    Effect of Setting Zoom Size

  • Click on the shapes area to show the floating button.
  • Move the pointer over the button to show its menu.
  • Select Set Zoom Size option.

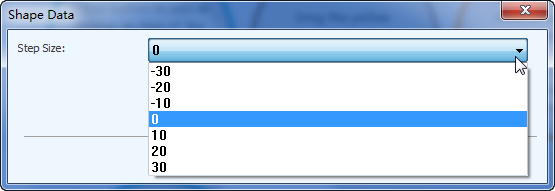

  • Select the step size you need (0 for the same size; positive numbers for enlargement; negative numbers for shrink.)
  • Step Size

    More Related Articles

    Rich Standard Shapes Let You Draw Easily

    Flowchart Symbols

    Mindmap Symbols

    3D Objects

    Basic Organizational Chart Symbols

    Application of Arrow Connectors
