What is Entity Relationship Diagram (ERD)?

In the context of database design, an entity is an object or data component. To illustrate the structure of a database, you must first define the entities and show the relationships between them. An entity-relationship diagram (ER Diagram) is used for this very purpose. It allows you to create a new database or document an existing one to manage or maintain it.

ER diagrams offer a visual representation of a database structure, making it more digestable for non-technical stakeholders. Databases can become very complicated, very fast. By having a visual representation of the database on hand, IT professionals can better analyse a database and identify problems more quickly.

ER Diagram Symbols

Below are pre-made and editable entity relationship symbols in EdrawMax , including entity, view, parent to category, category to child, dynamic connector, line connector, strong entity, weak entity, strong relationship, weak relationship, attribute, derived attribute, constraint, and participation, etc.

Chen ERD Symbols

Chen ERD Symbols

Entity Relationship Symbols

Database Model Diagram Symbols

Object Relationship Symbols

Object Relationship Symbols

Express-G Symbols

Express-G Symbols

Martin ERD Symbols

Martin ERD Symbols

ORM Diagram Symbols

ORM Diagram Symbols

How to Identify ER Diagram Symbols?

Entity Relationship Diagrams are really helpful, but it is essential to know all their components, symbols, and meaning of these symbols before you can use them. So, here we will discuss the three main components of an ER diagram and their shapes and relationships. These three components form the basis of every Entity-Relationship diagram, and an ERD would be incomplete if any one of them is missing. We will discuss these components in terms of Chen’s notation as well as Crow’s Foot notation.

Entities

The most significant component of an ER diagram is its entities. Since an ERD represents the structure of a database, the entities are the tables that the database is composed of. Entities are nouns, such as concepts, locations, products, roles, events, and things.

Now, the critical thing is to understand that different notations have different symbols.

  • Chen’s Notation: In this notation, the entity is represented by a rectangle. The entity is written inside a rectangular box.
  • Entities

    In this example, student, course, and professor are entities.

  • Crow’s Foot Notation: A table is formed with the entity as the title in this notation.
  • Entities

    In this example, “Employees” is an entity.

Relationships

After entities, the second component is the relationships between the entities. These relationships show what the associations between the different entities are. Usually, these relationships are depicted by verbs.

The symbols used to show a relationship in an ERD are as follows:

  • Chen’s Notation: In this notation, the relationships are represented by a diamond with descriptive text written inside it.
  • Relationships

  • Crow’s Foot Notation: In this notation, the relationships are represented by a line. On both ends of the line, symbols are present that describe the relationship’s cardinality.
  • Description Symbol
    Ring and dash: Minimum zero, maximum one (optional) Relationships
    Dash and dash: Minimum one, maximum one (mandatory) Relationships
    Ring and crow's foot: Minimum zero, maximum many (optional) Relationships
    Dash and crow's foot: Minimum one, maximum many (mandatory) Relationships

Attributes

After relationships, the next part is the attributes of the entities. As an entity is the table of a database, its attributes are the facts that describe the table. Usually, the attributes are nouns and form the columns of the tables in the database.

Now, let’s take a look at the symbols.

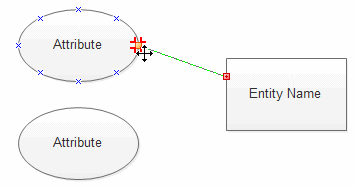

  • Chen’s Notation: In this notation, attributes are represented by a circular shape. They originate out of the entity.
  • Attributes

  • Crow’s Foot Notation: The attributes are listed under the table with the entity title in this notation.
  • Attributes

    In this example, employee ID, first name, and last name are the attributes of “Employees.”

EdrawMax

All-in-One Diagram Software
Create more than 280 types of diagrams effortlessly
Start diagramming with various templates and symbols easily
  • Superior file compatibility: Import and export drawings to various file formats, such as Visio
  • Cross-platform supported (Windows, Mac, Linux, Web)
Security Verified | Switch to Mac >>
Security Verified | Switch to Linux >>
Security Verified | Switch to Windows >>

How to Make a ER Diagram?

Step 1: Install and enable EdrawMax from your computer, and navigate to [New] > [Database Modeling]. You can see all the pre-made tempaltes of ER Diagrams.

Open EdrawMax

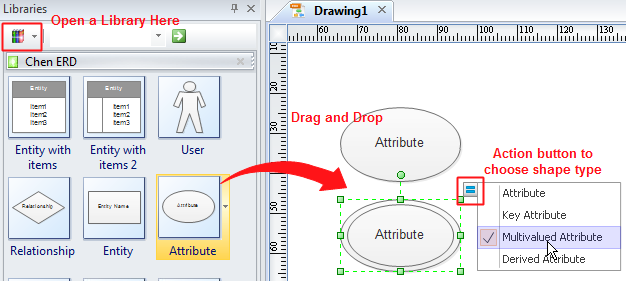

Step 2: Open and modify an ERD template selected from the gallery, or you can create a new one with ERD symbols provided by EdrawMax. The handy and powerful editing and formatting tools will also give you great help to create the diagram in minutes.

open ERD template

Step 3: When you have made your ERD in EdrawMax, you can save and export the drawing to graphics(JPG, PNG), PDF, SVG, Visio vsdx file format, editable MS Office file format, and HTML.

save and export file in EdrawMax

Step 4: Alternatively, you can share your ER diagram with your team via social media and sharing links. You can also publish your drawings into EdrawMax's template gallery and present it online.

share and publish file in EdrawMax

You can watch the video tutorial below and learn more details about how to draw an ER diagram with EdrawMax!

Best Practices for Developing Effective ER Diagrams

Making an ER diagram is a relatively simple task but could be a little challenging for a beginner. So, here are some tips to remember.

  • Note down all the entities separately to ensure that you don’t miss any out.
  • Be precise when naming the entity, attribute, or relationship. It would help if you avoided extensive and vague names at all costs.
  • Make sure that you have not repeated an entity or relationship more than once. Remove redundancy from your ER diagram.
  • Do not connect a relationship with a relationship. Entities and attributes are connected, not relationships.

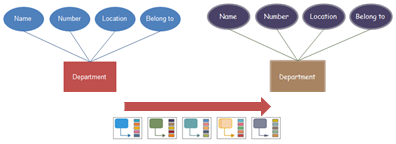

  • Use colors to highlight different areas and visually enhance your ER diagram.

Part 6: ER Diagram Examples

Example 1: Standard Entity Relationship Diagram

An Entity Relationship Diagram is a visual representation of how several entities exist in a system and their relationship with one another. A standard ER diagram shows department ids and their relationship with other service providers within the same industry.

Standard Entity Relationship Diagram

Example 2: ER Diagram for Accounts Receivable Systems

An ER Diagram for Accounts where a complete transaction flow happens can be visually illustrated using receivable systems’ mockup. An accounts receivable system shows who owes them money and how much they owe. It also reveals the ways to improve the cash flow that will directly impact a business’ workflow.

ER Diagram for Accounts Receivable Systems

Here shows more editable ER Diagram examples created by EdrawMax. You can download and edit these ER diagrams in EdrawMax for free!
